Technical Specifications
Last Updated: 2026-10-26
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

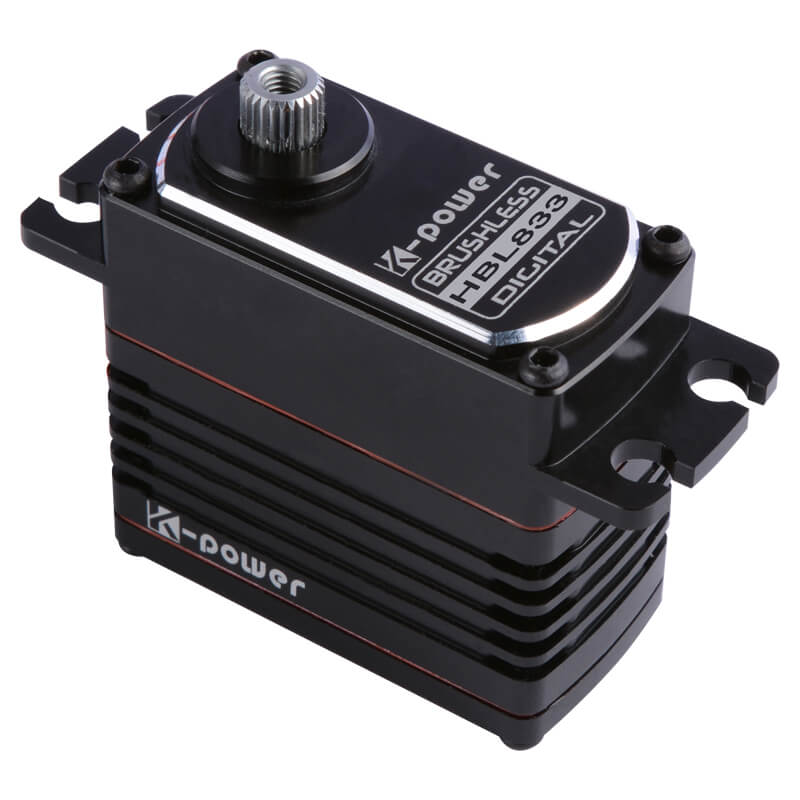

| Product Number | HBL833 |
| Category | Hobby |
| Performance | |
| Torque |
7.4V222.20 oz-in16.00 kg-cm1.6 N-m |
| Speed |
7.4V0.10 sec/60°600.0 deg/s100.0 RPM |
| Physical | |
| Weight | 2.54 oz72.0 gBelow Average |
| Dimensions |
L 1.57 in W 0.79 in H 1.50 in L 39.9 mm W 20.1 mm H 38.1 mm |
| Case Material | Aluminum |
| Drivetrain | |
| Motor Type | Brushless |
| Gears | Titanium |
| Gear Spline/Teeth | 25 T |
| Rotation Mode | Positional |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Modulation | Digital |
| Rotational Range | 120° |
| Pulse Width | 900-2100 µs |
| Dead Band | 2 µs |
| Angle Sensor | Potentiometer |
| Control System | PWM |
| Electrical & Environment | |
| Operating Voltage | 4.8–7.4 V |
| Temperature | -10–50 °C14–122 °F |
| Water Rating | Waterproof |
| Certification | CE | FCC |
| Origin | |
| Country of Origin | China |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Weight | Below Average Lighter than 28% of 1880 Digital Standard servos |
Performance Analysis
| Shaft Power | 4.11 W |
| Power Density | 2.208 W/in³ More power-dense than 48% of 1768 Digital Standard servos |
| Torque Density | 3.0861 oz-in/g |
| Torque-to-Volume Ratio | 119.43 oz-in/in³ |
| Speed-to-Weight | 0.13889 (1/sec·g) |
| Speed-Torque Trade-off | 22.22 |
| Voltage Range Width | 2.6 V Wider voltage range than 65% of 1560 Digital Standard servos |
| Dead-Band-to-Pulse-Width Ratio | 0.0017 Finer dead band than 38% of 504 Digital Standard servos |
