Technical Specifications
Last Updated: 2026-11-05
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

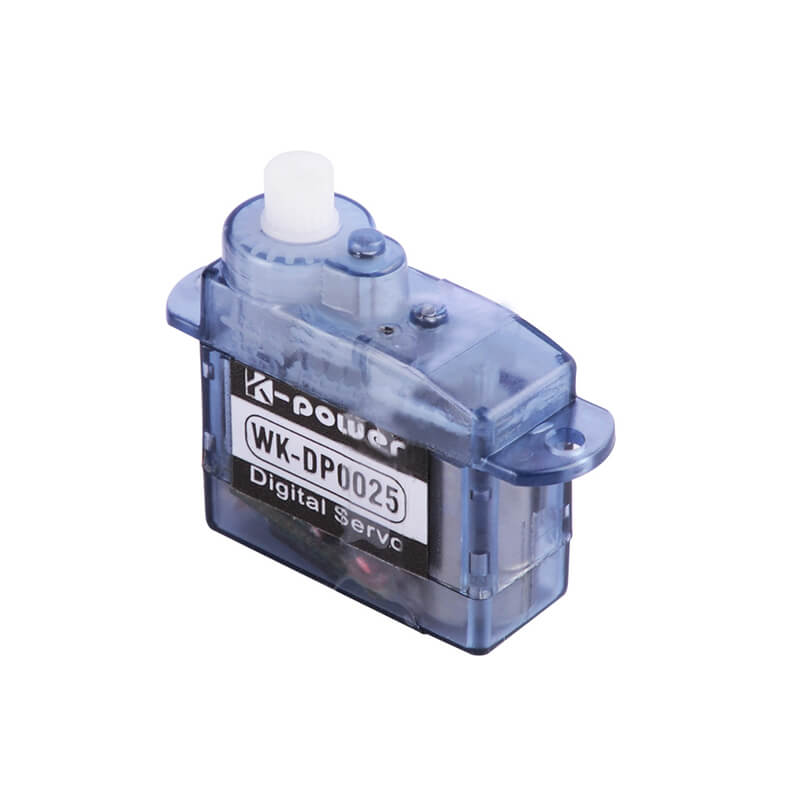

| Product Number | DP0025 |
| Category | Hobby |
| Performance | |
| Torque |
6.0V11.11 oz-in0.80 kg-cm0.1 N-m |
| Speed |
6.0V0.07 sec/60°857.1 deg/s142.9 RPM |
| Physical | |
| Weight | 0.09 oz2.5 gAbove Average |
| Dimensions |
L 0.79 in W 0.32 in H 0.64 in L 20.1 mm W 8.1 mm H 16.3 mm |
| Drivetrain | |
| Motor Type | Coreless |
| Gears | Plastic |
| Rotation/Support | Bushing |
| Control & Signal | |
| Rotational Range | 120° |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Weight | Above Average Lighter than 76% of 178 Nano servos |
Performance Analysis
| Shaft Power | 0.29 W |
| Power Density | 1.814 W/in³ More power-dense than 56% of 62 Kpower servos |
| Torque Density | 4.4440 oz-in/g |
| Torque-to-Volume Ratio | 68.67 oz-in/in³ |
| Speed-to-Weight | 5.71429 (1/sec·g) |
| Speed-Torque Trade-off | 0.78 |
