Technical Specifications
Last Updated: 2026-10-10
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

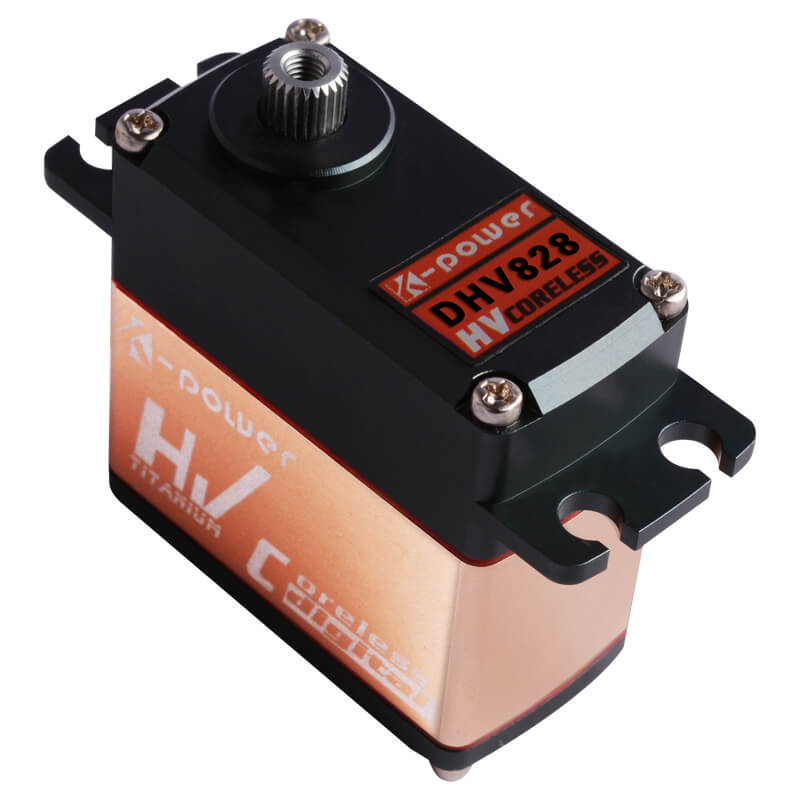

| Product Number | DHV828 |
| Category | Hobby |
| Performance | |
| Torque |
7.4V
102.79 oz-in
7.40 kg-cm
0.7 N-m
6.0V
83.34 oz-in
6.00 kg-cm
0.6 N-m
|
| Speed |
7.4V
0.16 sec/60°
375.0 deg/s
62.5 RPM
6.0V
0.18 sec/60°
333.3 deg/s
55.6 RPM
|
| Physical | |
| Weight | 2.29 oz65.0 gBelow Average |
| Dimensions |
L 1.57 in W 0.79 in H 1.54 in L 39.9 mm W 20.1 mm H 39.1 mm |
| Case Material | Aluminum |
| Drivetrain | |
| Motor Type | Coreless |
| Gears | Titanium |
| Rotation Mode | Positional |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Rotational Range | 120° |
| Control System | TTL |
| Electrical & Environment | |
| Operating Voltage | 9–13 V |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Weight | Below Average Lighter than 35% of 2538 Standard servos |
Performance Analysis
| Shaft Power | 0.86–1.19 W |
| Power Density | 0.622 W/in³ More power-dense than 25% of 62 Kpower servos |
| Torque Density | 1.2822 oz-in/g |
| Torque-to-Volume Ratio | 43.63 oz-in/in³ |
| Speed-to-Weight | 0.08547 (1/sec·g) |
| Speed-Torque Trade-off | 15.00 |
| Voltage Range Width | 4.0 V 3rd-highest voltage range width of 34 Kpower servos |
