Technical Specifications
Last Updated: 2026-10-26
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

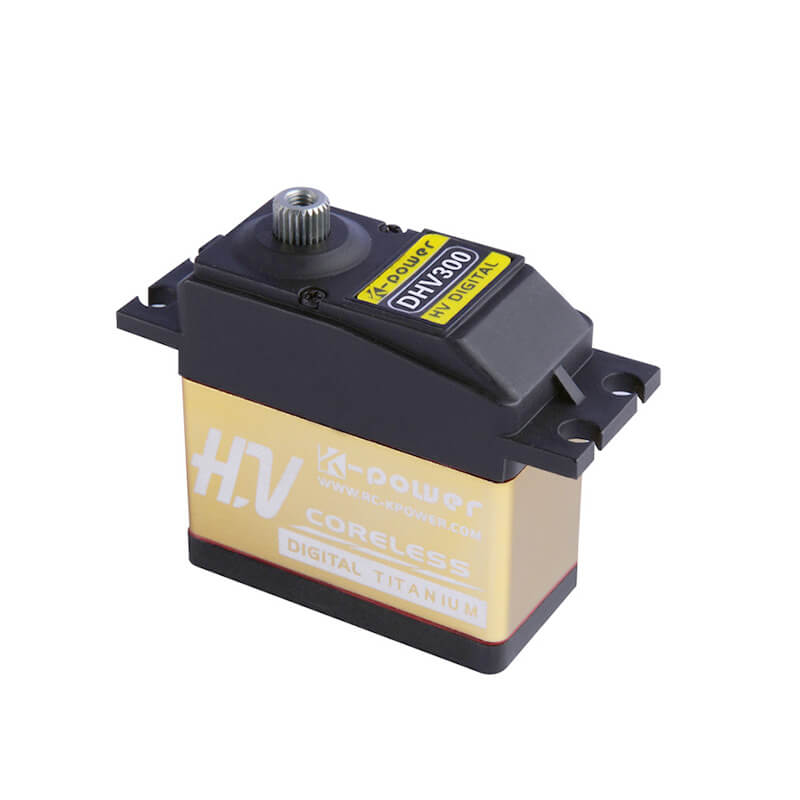

| Product Number | DHV300 |
| Category | Hobby |
| Performance | |
| Torque |
7.4V486.06 oz-in35.00 kg-cm3.4 N-m |
| Speed |
7.4V0.15 sec/60°400.0 deg/s66.7 RPM |
| Stall Current | ≤5.5 A≤5500 mABelow Average |
| Physical | |
| Weight | 2.29 oz65.0 gAverage |
| Dimensions |
L 1.57 in W 0.79 in H 1.54 in L 39.9 mm W 20.1 mm H 39.1 mm |
| Case Material | Plastic / Aluminum |
| Drivetrain | |
| Motor Type | Coreless |
| Gears | Titanium |
| Gear Spline/Teeth | 25 T |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Modulation | Digital |
| Rotational Range | 180° |
| Angle Sensor | Potentiometer |
| Control System | PWM |
| Electrical & Environment | |
| Operating Voltage | 4.8–7.4 V |
| Temperature | -10–50 °C14–122 °F |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Weight | Average Lighter than 44% of 1872 Digital Standard servos |
| Stall Current | Below Average Lower draw than 18% of 569 Digital Standard servos |
Performance Analysis
| Shaft Power | 5.99 W |
| Power Density | 3.137 W/in³ More power-dense than 62% of 1762 Digital Standard servos |
| Torque Density | 7.4779 oz-in/g |
| Torque-to-Volume Ratio | 254.47 oz-in/in³ |
| Speed-to-Weight | 0.10256 (1/sec·g) |
| Speed-Torque Trade-off | 72.91 |
| Current-per-Torque Ratio | 0.0113 A/oz-in |
| Voltage Range Width | 2.6 V Wider voltage range than 65% of 1552 Digital Standard servos |
