Technical Specifications
Last Updated: 2026-10-10
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |
| Product Number | KAV20.1088MGW |
| Category | Hobby |
| Performance | |
| Torque |
8.4V
1,027.86 oz-in
74.01 kg-cm
7.3 N-m
7.4V
902.85 oz-in
65.01 kg-cm
6.4 N-m
6.0V
763.95 oz-in
55.01 kg-cm
5.4 N-m
4.8V
625.05 oz-in
45.01 kg-cm
4.4 N-m
Top 10%
|
| Speed |
8.4V
0.13 sec/60°
461.5 deg/s
76.9 RPM
7.4V
0.14 sec/60°
428.6 deg/s
71.4 RPM
6.0V
0.17 sec/60°
352.9 deg/s
58.8 RPM
4.8V
0.19 sec/60°
315.8 deg/s
52.6 RPM
Below Average
|
| Physical | |
| Weight | 3.00 oz85.0 gBottom 10% |
| Dimensions |
L 1.57 in W 0.79 in H 1.50 in L 39.9 mm W 20.1 mm H 38.1 mm |
| Case Material | Aluminum |
| Drivetrain | |
| Motor Type | Brushless |
| Gears | Steel |
| Gear Spline/Teeth | 25 T |
| Rotation Mode | Positional |
| Rotation/Support | Bushing |
| Control & Signal | |
| Modulation | Digital |
| Rotational Range | 180° |
| Pulse Width | 500-2500 µs |
| Neutral Position | 1500 µs |
| Angle Sensor | Magnetic Encoder |
| Control System | PWM |
| Programmable | Yes |
| Electrical & Environment | |
| Operating Voltage | 4.8–8.4 V |
| Water Rating | IP67 |
| Connectivity | |
| Connector | JR (Universal) estimate |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Torque | Top 10% Stronger than 96% of 1043 Digital Standard servos at 4.8V |
| Speed | Below Average Faster than 12% of 1041 Digital Standard servos at 4.8V |
| Weight | Bottom 10% Lighter than 4% of 1902 Digital Standard servos |
Performance Analysis
| Shaft Power | 6.08–14.62 W |
| Power Density | 7.858 W/in³ More power-dense than 93% of 1759 Digital Standard servos |
| Torque Density | 7.3535 oz-in/g Stronger than 94% of 1036 Digital Standard servos |
| Torque-to-Volume Ratio | 335.97 oz-in/in³ Denser torque than 96% of 1042 Digital Standard servos |
| Speed-to-Weight | 0.06192 (1/sec·g) Faster than 3% of 1033 Digital Standard servos |
| Speed-Torque Trade-off | 118.76 Better balanced than 98% of 1031 Digital Standard servos |
| Torque Gain per Volt | 17.90%/V More voltage-responsive (torque) than 70% of 850 Digital Standard servos |
| Speed Gain per Volt | 12.82%/V More voltage-responsive (speed) than 35% of 871 Digital Standard servos |
| Voltage Range Width | 3.6 V Wider voltage range than 82% of 1539 Digital Standard servos |
Similar Active Servos

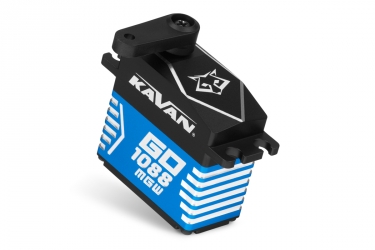

Reviews of Kavan GO-1088MGW
