Technical Specifications
Last Updated: 2026-10-25
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

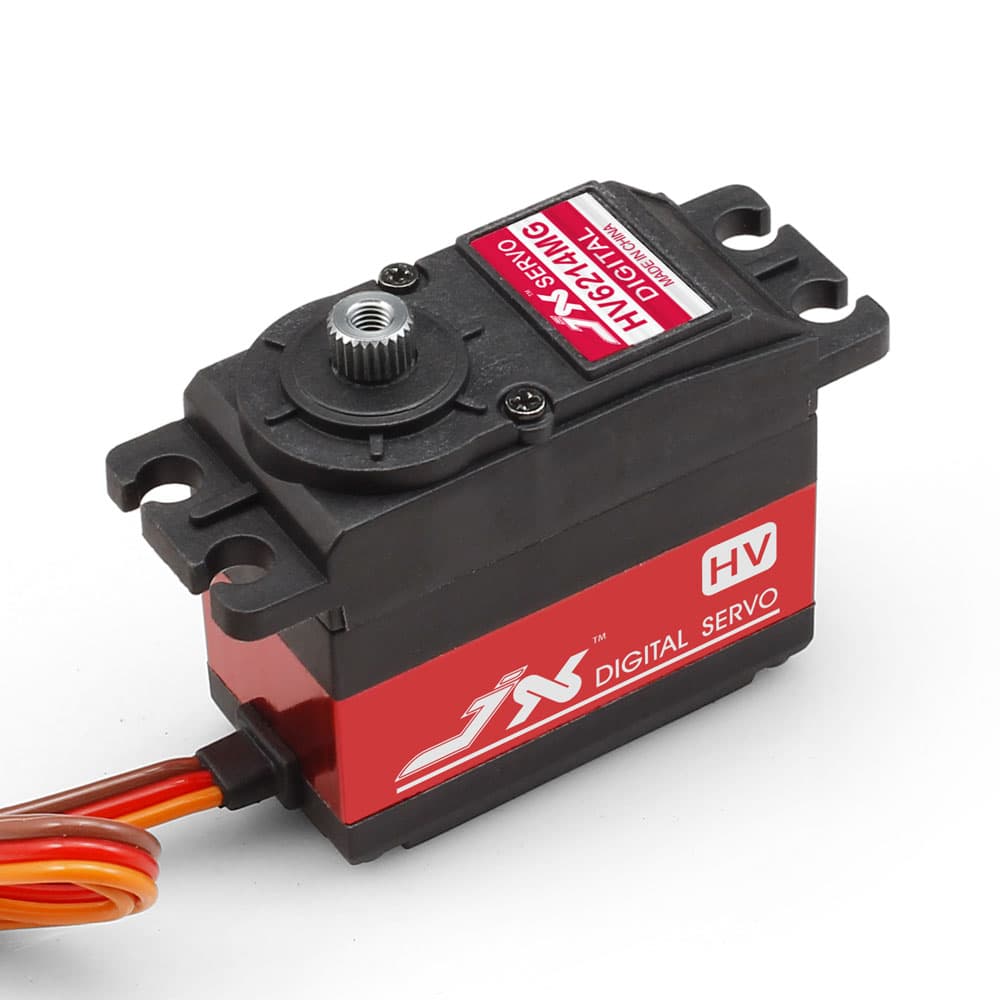

| Product Number | PDI-HV6214MG |
| Category | Hobby |
| Performance | |
| Torque |
7.4V
202.79 oz-in
14.60 kg-cm
1.4 N-m
6.0V
177.79 oz-in
12.80 kg-cm
1.3 N-m
Average
|
| Speed |
7.4V
0.16 sec/60°
375.0 deg/s
62.5 RPM
6.0V
0.18 sec/60°
333.3 deg/s
55.6 RPM
Below Average
|
| Physical | |
| Weight | 2.19 oz62.0 gAverage |
| Dimensions |
L 1.59 in W 0.80 in H 1.496 in L 40.4 mm W 20.3 mm H 38.0 mm |
| Case Material | Aluminum |
| Drivetrain | |
| Motor Type | Cored |
| Gears | Aluminum |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Modulation | Digital |
| Pulse Cycle | 3.03 ms |
| Neutral Position | 1520 µs |
| Dead Band | 2 µs |
| Refresh Rate | 330 Hz |
| Control System | PWM |
| Electrical & Environment | |
| Operating Voltage | 6–8.4 V |
| Temperature | -10–55 °C14–131 °F |
| Connectivity | |
| Connector | JR (Universal) |
| Wire Length | 265 mm10.43 in |
| Origin | |
| Country of Origin | China |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Torque | Average Stronger than 39% of 1060 Digital Standard servos at 6.0V |
| Speed | Below Average Faster than 19% of 1045 Digital Standard servos at 6.0V |
| Weight | Average Lighter than 52% of 1880 Digital Standard servos |
Performance Analysis
| Shaft Power | 1.83–2.34 W |
| Power Density | 1.232 W/in³ More power-dense than 24% of 1768 Digital Standard servos |
| Torque Density | 2.8676 oz-in/g Stronger than 40% of 1053 Digital Standard servos |
| Torque-to-Volume Ratio | 93.43 oz-in/in³ Denser torque than 40% of 1058 Digital Standard servos |
| Speed-to-Weight | 0.08961 (1/sec·g) Faster than 24% of 1038 Digital Standard servos |
| Speed-Torque Trade-off | 32.01 Better balanced than 54% of 1034 Digital Standard servos |
| Voltage Range Width | 2.4 V Wider voltage range than 50% of 1560 Digital Standard servos |
Similar Active Servos
Reviews (2)
Includes 2 reviews aggregated from around the web.
There are very few reviews for this servo on the web. One builder uses it in animatronics and says it is the quietest of the high-power servos they have used.
