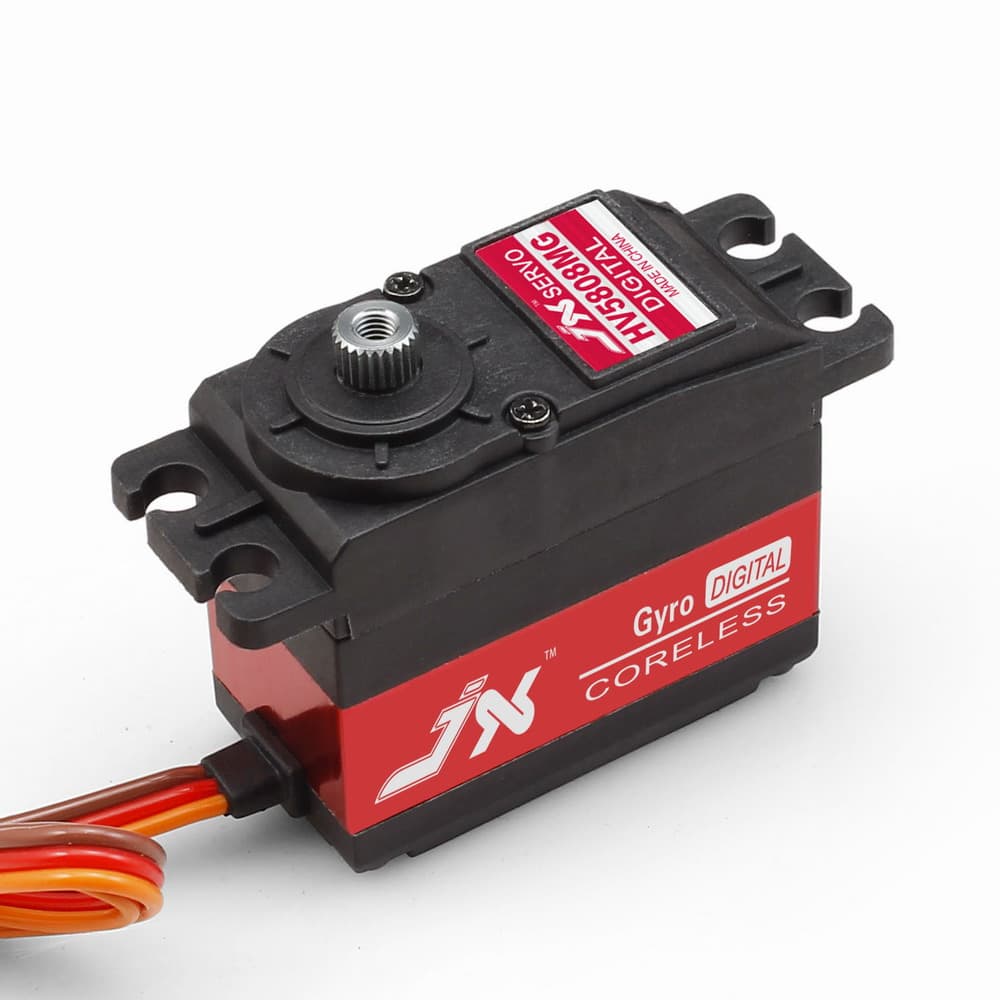

JX Servo PDI-HV5808MG - HV Coreless Servo

Specifications

Source: Most data comes from the manufacturer but some data is sourced from our loyal community.

Last Updated:	2025-03-21
Modulation:	Digital
Torque:	6.0V: 79.31 oz-in (5.71 kg-cm) 8.4V: 100.29 oz-in (7.22 kg-cm)
Speed:	6.0V: 0.05 sec/60° 8.4V: 0.04 sec/60°
Weight:	2.06 oz (58.4 g)
Dimensions:	Length:1.59 in (40.4 mm) Width:0.80 in (20.3 mm) Height:1.43 in (36.3 mm)
Motor Type:	Coreless
Gear Type:	Metal
Rotation/Support:	Dual Bearings
Rotational Range:	(add)
Pulse Cycle:	(add)
Pulse Width:	(add)
Connector Type:	JR
