Technical Specifications
Last Updated: 2026-10-26
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

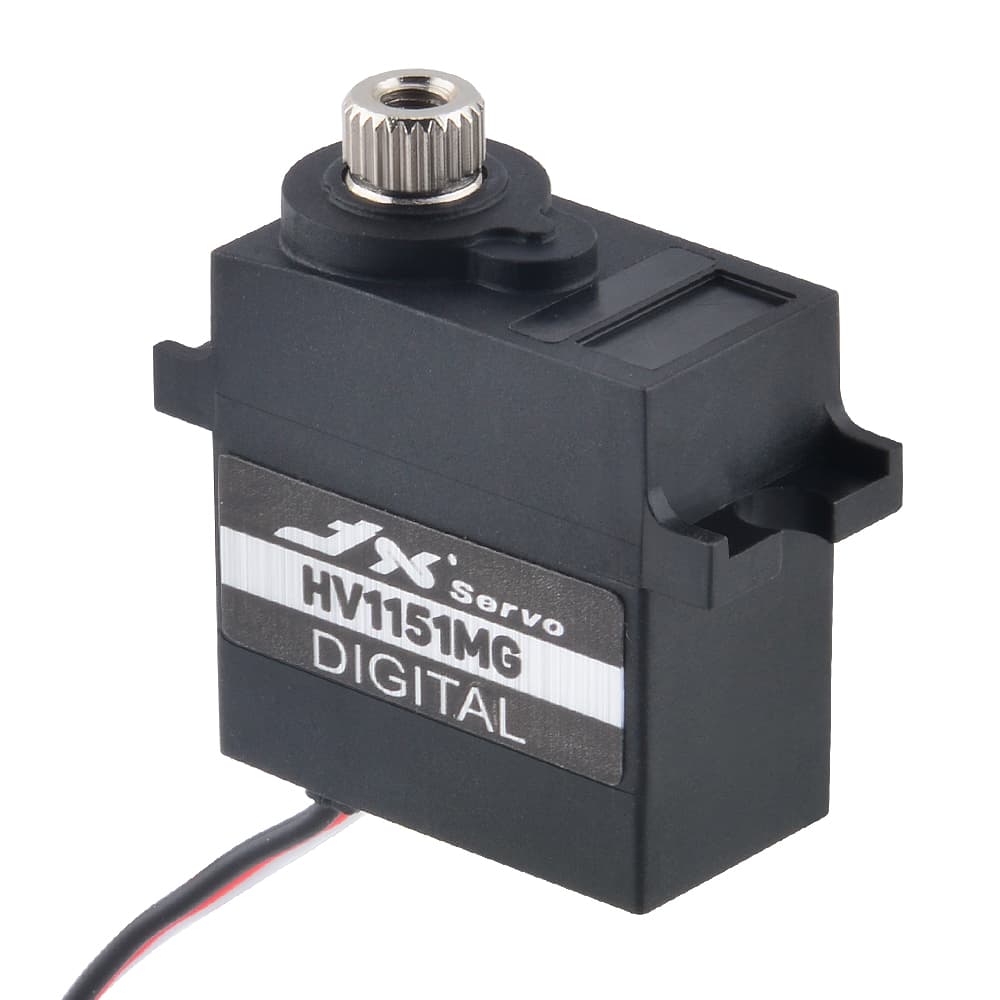

| Product Number | PDI-HV1151MG |
| Category | Hobby |
| Performance | |
| Torque |
8.4V
62.51 oz-in
4.50 kg-cm
0.4 N-m
6.0V
48.62 oz-in
3.50 kg-cm
0.3 N-m
Average
|
| Speed |
8.4V
0.10 sec/60°
600.0 deg/s
100.0 RPM
6.0V
0.12 sec/60°
500.0 deg/s
83.3 RPM
Average
|
| Running Current |
8.4V
0.180 A
180 mA
6.0V
0.150 A
150 mA
Above Average
|
| Physical | |
| Weight | 0.53 oz15.0 gTop 10% |
| Dimensions |
L 0.913 in W 0.492 in H 1.008 in L 23.2 mm W 12.5 mm H 25.6 mm |
| Case Material | Nylon |
| Drivetrain | |
| Motor Type | Cored |
| Motor Drive | MOS |
| Gears | Aluminum |
| Gear Spline/Teeth | 25 T |
| Rotation Mode | Positional |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Modulation | Digital |
| Rotational Range | 180° |
| Pulse Cycle | 3.03 ms |
| Pulse Width | 1000-2500 µs |
| Neutral Position | 1520 µs |
| Dead Band | 4 µs |
| Refresh Rate | 330 Hz |
| Control System | PWM |
| Electrical & Environment | |
| Operating Voltage | 6–8.4 V |
| Temperature | -20–60 °C-4–140 °F |
| Water Rating | Waterproof |
| Connectivity | |
| Connector | JR (Universal) |
| Wire Length | 310 mm12.2 in |
| Origin | |
| Country of Origin | China |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Torque | Average Stronger than 37% of 290 Digital Mini servos at 6.0V |
| Speed | Average Faster than 47% of 293 Digital Mini servos at 6.0V |
| Weight | Top 10% Lighter than 94% of 505 Digital Mini servos |
| Running Current | Above Average Lower draw than 68% of 41 Digital Mini servos at 6.0V |
Performance Analysis
| Shaft Power | 0.75–1.16 W |
| Power Density | 2.553 W/in³ More power-dense than 66% of 482 Digital Mini servos |
| Torque Density | 3.2413 oz-in/g Stronger than 78% of 286 Digital Mini servos |
| Torque-to-Volume Ratio | 107.38 oz-in/in³ Denser torque than 71% of 288 Digital Mini servos |
| Speed-to-Weight | 0.55556 (1/sec·g) Faster than 86% of 289 Digital Mini servos |
| Speed-Torque Trade-off | 5.83 Better balanced than 38% of 288 Digital Mini servos |
| Torque Gain per Volt | 11.90%/V More voltage-responsive (torque) than 17% of 257 Digital Mini servos |
| Speed Gain per Volt | 8.33%/V More voltage-responsive (speed) than 6% of 262 Digital Mini servos |
| Voltage Range Width | 2.4 V Wider voltage range than 51% of 405 Digital Mini servos |
| Dead-Band-to-Pulse-Width Ratio | 0.0027 Finer dead band than 13% of 104 Digital Mini servos |
