Technical Specifications
Last Updated: 2026-10-22
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

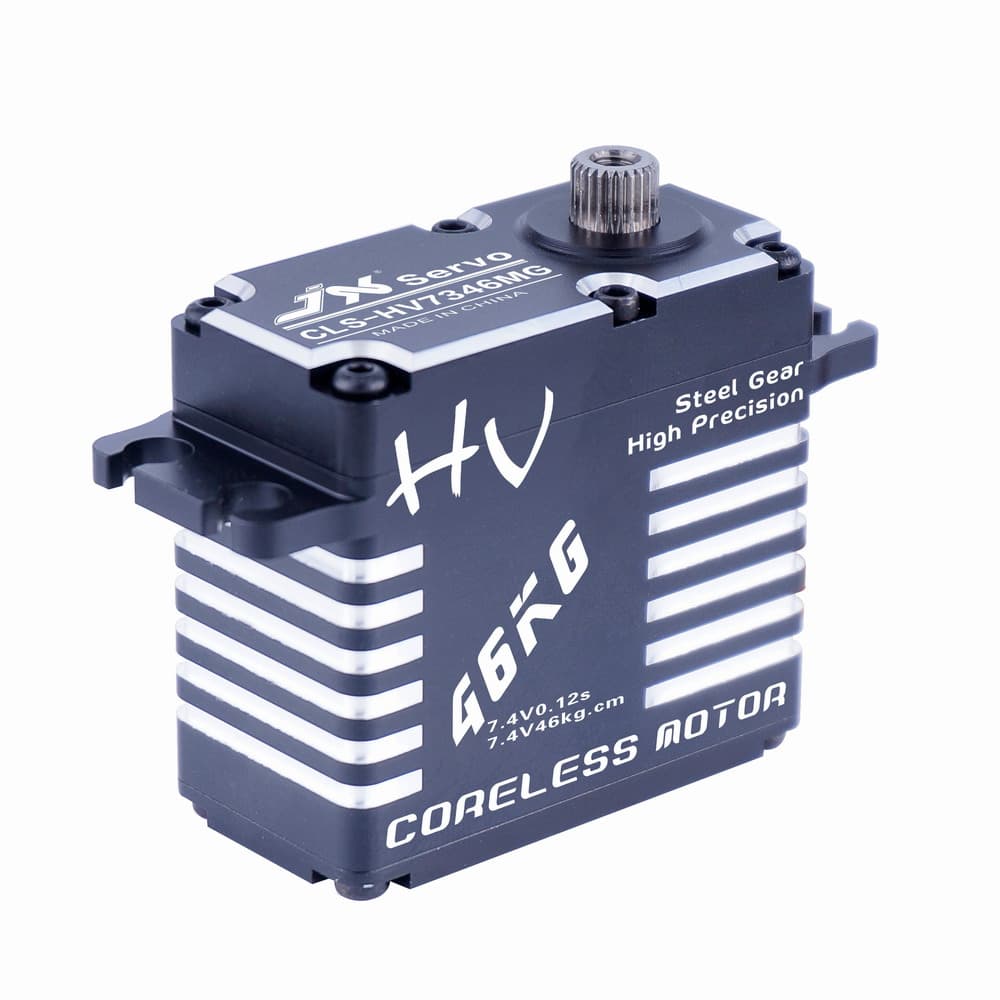

| Product Number | CLS-HV7346MG |
| Category | Hobby |
| Performance | |
| Torque |
7.4V
651.44 oz-in
46.91 kg-cm
4.6 N-m
6.0V
520.88 oz-in
37.51 kg-cm
3.7 N-m
Top 10%
|
| Speed |
7.4V
0.12 sec/60°
500.0 deg/s
83.3 RPM
6.0V
0.14 sec/60°
428.6 deg/s
71.4 RPM
Average
|
| Physical | |
| Weight | 2.57 oz73.0 gBelow Average |
| Dimensions |
L 1.575 in W 0.787 in H 1.457 in L 40.0 mm W 20.0 mm H 37.0 mm |
| Case Material | Aluminum |
| Drivetrain | |
| Motor Type | Coreless |
| Gears | Steel |
| Gear Spline/Teeth | 25 T |
| Rotation Mode | Positional |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Modulation | Digital |
| Rotational Range | 120° |
| Pulse Cycle | 3.03 ms |
| Dead Band | 1 µs |
| Refresh Rate | 330 Hz |
| Angle Sensor | Potentiometer |
| Programmable | Yes |
| Electrical & Environment | |
| Operating Voltage | 6–7.4 V |
| Water Rating | Splashproof |
| Connectivity | |
| Connector | JR (Universal) |
| Wire Length | 265 mm10.43 in |
| Origin | |
| Country of Origin | China |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Torque | Top 10% Stronger than 92% of 1061 Digital Standard servos at 6.0V |
| Speed | Average Faster than 48% of 1044 Digital Standard servos at 6.0V |
| Weight | Below Average Lighter than 25% of 1880 Digital Standard servos |
Performance Analysis
| Shaft Power | 6.88–10.04 W |
| Power Density | 5.558 W/in³ More power-dense than 82% of 1763 Digital Standard servos |
| Torque Density | 7.1353 oz-in/g Stronger than 94% of 1054 Digital Standard servos |
| Torque-to-Volume Ratio | 288.42 oz-in/in³ Denser torque than 94% of 1059 Digital Standard servos |
| Speed-to-Weight | 0.09785 (1/sec·g) Faster than 34% of 1037 Digital Standard servos |
| Speed-Torque Trade-off | 72.92 Better balanced than 90% of 1035 Digital Standard servos |
| Torque Gain per Volt | 17.90%/V More voltage-responsive (torque) than 69% of 873 Digital Standard servos |
| Speed Gain per Volt | 11.90%/V More voltage-responsive (speed) than 26% of 873 Digital Standard servos |
| Voltage Range Width | 1.4 V Wider voltage range than 29% of 1560 Digital Standard servos |
