Technical Specifications
Last Updated: 2026-07-10
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |
| Category | Hobby |
| Performance | |
| Torque |
6.0V
306.41 oz-in
22.06 kg-cm
2.2 N-m
4.8V
239.05 oz-in
17.21 kg-cm
1.7 N-m
|
| Speed |
6.0V
0.11 sec/60°
545.5 deg/s
90.9 RPM
4.8V
0.13 sec/60°
461.5 deg/s
76.9 RPM
|
| Physical | |
| Weight | 2.15 oz61.0 gAverage |
| Dimensions |
L 1.59 in W 0.80 in H 1.42 in L 40.4 mm W 20.3 mm H 36.1 mm |
| Drivetrain | |
| Motor Type | Brushless |
| Gears | Steel |
| Rotation/Support | Triple Bearings |
| Control & Signal | |
| Modulation | Digital |
| Connectivity | |
| Connector | JR (Universal) |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Weight | Average Lighter than 56% of 1902 Digital Standard servos |
Performance Analysis
| Shaft Power | 3.40–5.15 W |
| Power Density | 2.852 W/in³ More power-dense than 57% of 1759 Digital Standard servos |
| Torque Density | 3.9189 oz-in/g |
| Torque-to-Volume Ratio | 132.35 oz-in/in³ |
| Speed-to-Weight | 0.12610 (1/sec·g) |
| Speed-Torque Trade-off | 31.08 |
Similar Active Servos

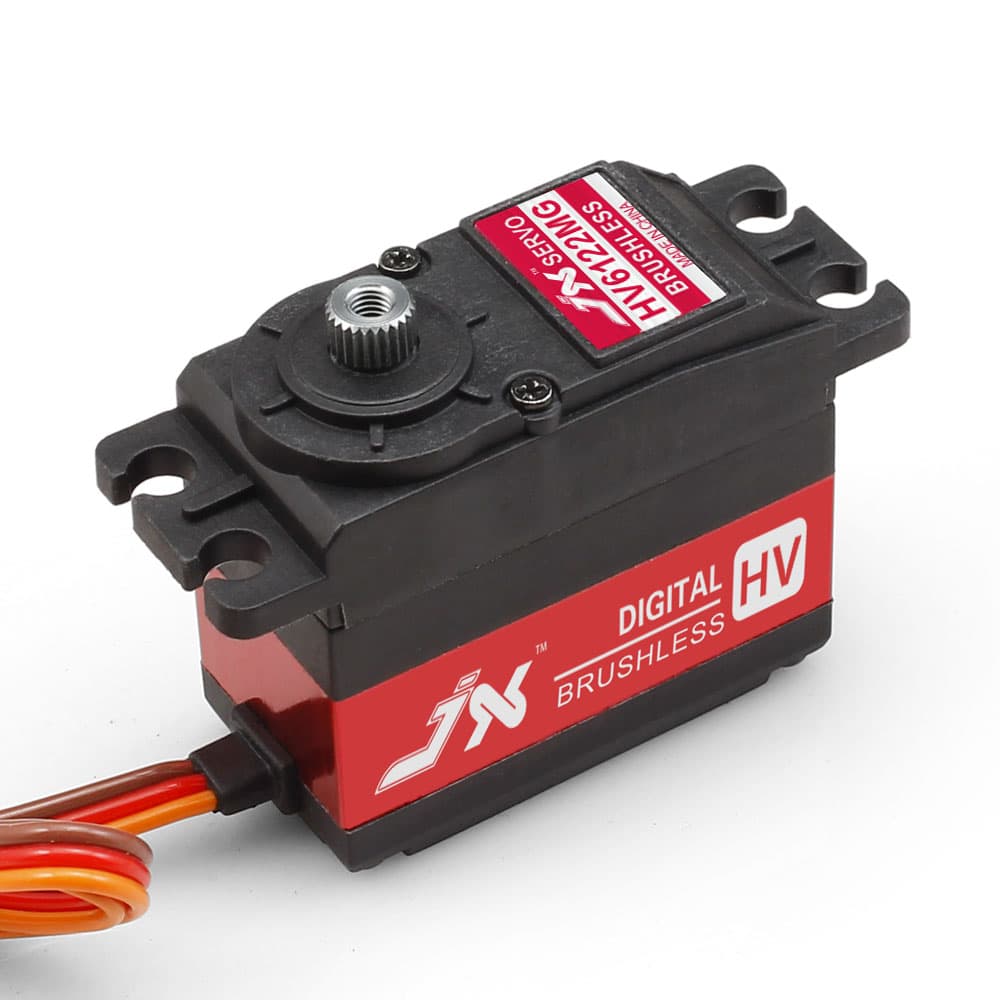

Reviews of JX Servo BLS-HV6122MG
