Technical Specifications
Last Updated: 2026-10-10
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

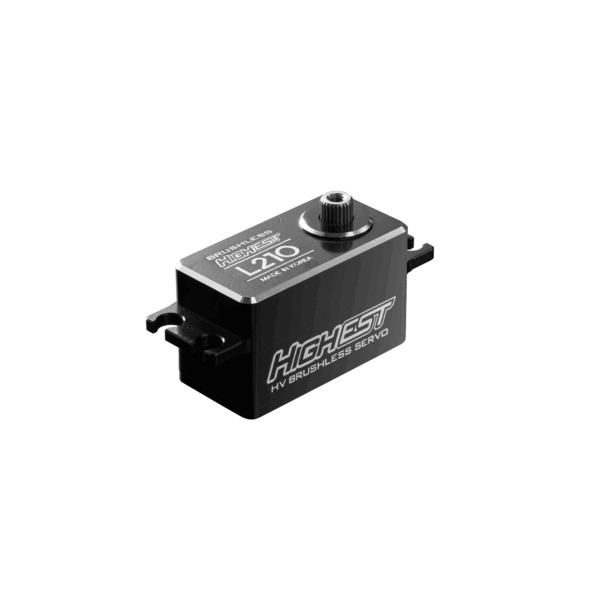

| Product Number | L210 |
| Category | Hobby |
| Performance | |
| Torque |
8.4V
247.20 oz-in
17.80 kg-cm
1.7 N-m
7.4V
216.64 oz-in
15.60 kg-cm
1.5 N-m
6.0V
174.98 oz-in
12.60 kg-cm
1.2 N-m
|
| Speed |
8.4V
0.06 sec/60°
1,000.0 deg/s
166.7 RPM
7.4V
0.06 sec/60°
1,000.0 deg/s
166.7 RPM
6.0V
0.07 sec/60°
857.1 deg/s
142.9 RPM
|
| Physical | |
| Weight | 1.89 oz53.7 gAverage |
| Dimensions |
L 1.57 in W 0.79 in H 0.99 in L 39.9 mm W 20.1 mm H 25.1 mm |
| Case Material | Aluminum |
| Drivetrain | |
| Motor Type | Brushless |
| Gears | Steel |
| Gear Spline/Teeth | 25 T |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Modulation | Digital |
| Pulse Cycle | 3.003 ms |
| Electrical & Environment | |
| Operating Voltage | 4.8–8.4 V |
| Temperature | -10–60 °C14–140 °F |
| Connectivity | |
| Wire Length | 70 mm2.76 in |
| Origin | |
| Country of Origin | South Korea |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Weight | Average Lighter than 36% of 251 Digital Low Profile servos |
Performance Analysis
| Shaft Power | 4.62–7.62 W |
| Power Density | 6.204 W/in³ More power-dense than 77% of 215 Digital Low Profile servos |
| Torque Density | 3.2585 oz-in/g |
| Torque-to-Volume Ratio | 142.50 oz-in/in³ |
| Speed-to-Weight | 0.26603 (1/sec·g) |
| Speed-Torque Trade-off | 12.25 |
| Voltage Range Width | 3.6 V Wider voltage range than 80% of 223 Digital Low Profile servos |
