Technical Specifications
Last Updated: 2026-10-26
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

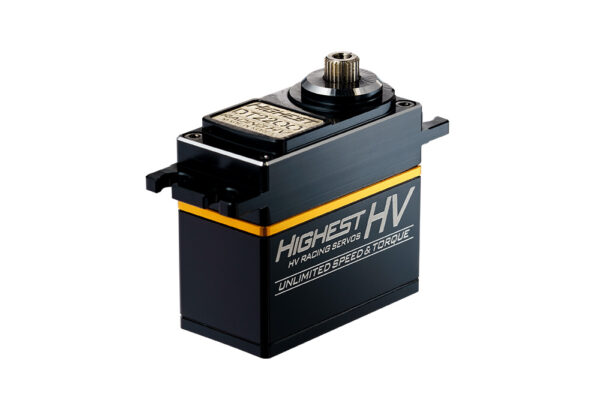

| Product Number | DT2200 |
| Category | Hobby |
| Performance | |
| Torque |
7.4V
352.74 oz-in
25.40 kg-cm
2.5 N-m
6.0V
281.91 oz-in
20.30 kg-cm
2.0 N-m
|
| Speed |
7.4V
0.08 sec/60°
750.0 deg/s
125.0 RPM
6.0V
0.10 sec/60°
600.0 deg/s
100.0 RPM
|
| Physical | |
| Weight | 2.67 oz75.7 gBelow Average |
| Dimensions |
L 1.56 in W 0.79 in H 1.52 in L 39.6 mm W 20.1 mm H 38.6 mm |
| Drivetrain | |
| Motor Type | Coreless |
| Gears | Metal |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Modulation | Digital |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Weight | Below Average Lighter than 20% of 1872 Digital Standard servos |
Performance Analysis
| Shaft Power | 5.21–8.15 W |
| Power Density | 4.352 W/in³ More power-dense than 74% of 1762 Digital Standard servos |
| Torque Density | 3.7240 oz-in/g |
| Torque-to-Volume Ratio | 150.49 oz-in/in³ |
| Speed-to-Weight | 0.13210 (1/sec·g) |
| Speed-Torque Trade-off | 28.19 |
