Technical Specifications
Last Updated: 2026-10-26
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

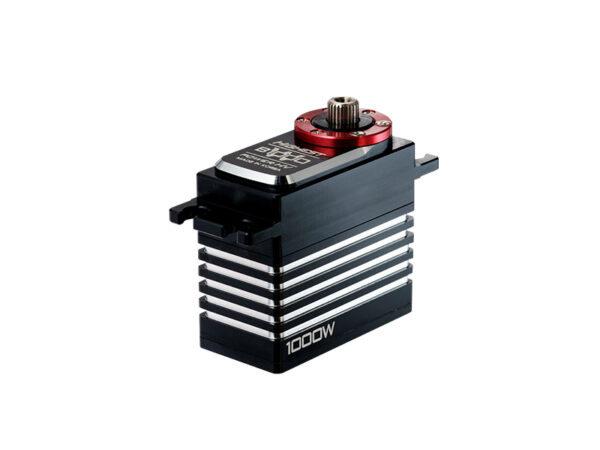

| Product Number | B1000W |
| Category | Hobby |
| Performance | |
| Torque |
7.4V562.44 oz-in40.50 kg-cm4.0 N-m |
| Speed |
7.4V0.10 sec/60°600.0 deg/s100.0 RPM |
| Physical | |
| Weight | 2.53 oz71.7 gBelow Average |
| Dimensions |
L 1.56 in W 0.79 in H 1.55 in L 39.6 mm W 20.1 mm H 39.4 mm |
| Case Material | Aluminum |
| Drivetrain | |
| Motor Type | Brushless |
| Gears | Steel |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Modulation | Digital |
| Electrical & Environment | |
| Operating Voltage | 6–7.4 V |
| Water Rating | Waterproof |
| Connectivity | |
| Wire Length | 350 mm13.78 in |
| Origin | |
| Country of Origin | South Korea |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Weight | Below Average Lighter than 30% of 1880 Digital Standard servos |
Performance Analysis
| Shaft Power | 10.40 W |
| Power Density | 5.444 W/in³ More power-dense than 82% of 1768 Digital Standard servos |
| Torque Density | 7.8444 oz-in/g |
| Torque-to-Volume Ratio | 294.44 oz-in/in³ |
| Speed-to-Weight | 0.13947 (1/sec·g) |
| Speed-Torque Trade-off | 56.24 |
| Voltage Range Width | 1.4 V Wider voltage range than 28% of 1560 Digital Standard servos |
Similar Active Servos
Holmes Hobbies Tug-Buddy-LP
Weight: 69 grams
Dimensions: 1.575" x 0.787" x 1.181"
Size Class: Low Profile
