Technical Specifications
Last Updated: 2026-07-10
|
Identity
Performance
Physical
Drivetrain
Control & Signal
Electrical & Environment
Connectivity
Origin
Preferences are saved automatically.
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |
| Product Number | (add) |
| Category | Hobby |
| Performance | |
| Torque |
6.0V
58.34 oz-in
4.20 kg-cm
0.4 N-m
4.8V
44.45 oz-in
3.20 kg-cm
0.3 N-m
|
| Speed |
6.0V
0.08 sec/60°
750.0 deg/s
125.0 RPM
4.8V
0.09 sec/60°
666.7 deg/s
111.1 RPM
|
| Running Current | (add) |
| Stall Current | (add) |
| Physical | |
| Weight | 0.72 oz20.3 g |
| Dimensions |
L 0.91 in W 0.47 in H 1.09 in L 23.1 mm W 11.9 mm H 27.7 mm |
| Case Material | Nylon / Fiberglass |
| Drivetrain | |
| Motor Type | Coreless |
| Motor Drive | (add) |
| Gears | Steel |
| Gear Spline/Teeth | (add) |
| Shaft Size | (add) |
| Rotation Mode | (add) |
| Rotation/Support | Dual Bearings |
| Backlash | (add) |
| Control & Signal | |
| Modulation | Digital |
| Direction | (add) |
| Rotational Range | 180° |
| Mechanical Limit | 120° |
| Pulse Cycle | (add) |
| Pulse Width | 800-2000 µs |
| Neutral Position | 1520 µs |
| Dead Band | 1 µs |
| Refresh Rate | 330 Hz |
| Angle Sensor | Potentiometer |
| Control System | PWM |
| Programmable | Yes |
| Signal Voltage | (add) |
| Electrical & Environment | |
| Operating Voltage | 4.8–6 V |
| Power Source | (add) |
| Regulator Type | (add) |
| Temperature | -10–50 °C14–122 °F |
| Water Rating | (add) |
| Certification | (add) |
| Idle Current | (add) |
| Connectivity | |
| Connector | JR (Universal) |
| Wire Length | 220 mm8.66 in |
| Origin | |
| Country of Origin | China |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Performance Analysis
| Shaft Power | 0.91–1.35 W |
| Torque Density | 2.1897 oz-in/g Stronger than 44% of the 242 Digital Micro servos in the database |
| Torque-to-Volume Ratio | 95.35 oz-in/in³ Denser torque than 70% of the 244 Digital Micro servos in the database |
| Power Density | 2.892 W/in³ More power-dense than 61% of the 544 Digital Micro servos in the database |
| Speed-to-Weight | 0.54735 (1/sec·g) Faster than 22% of the 242 Digital Micro servos in the database |
| Speed-Torque Trade-off | 4.00 Better balanced than 70% of the 244 Digital Micro servos in the database |
| Torque Gain per Volt | 26.04%/V More voltage-responsive (torque) than 88% of the 195 Digital Micro servos in the database |
| Speed Gain per Volt | 10.41%/V More voltage-responsive (speed) than 9% of the 197 Digital Micro servos in the database |
| Voltage Range Width | 1.2 V Wider voltage range than 10% of the 409 Digital Micro servos in the database |
| Dead-Band-to-Pulse-Width Ratio | 0.0008 Finer dead band than 58% of the 123 Digital Micro servos in the database |
Quick Actions
Similar Active Servos

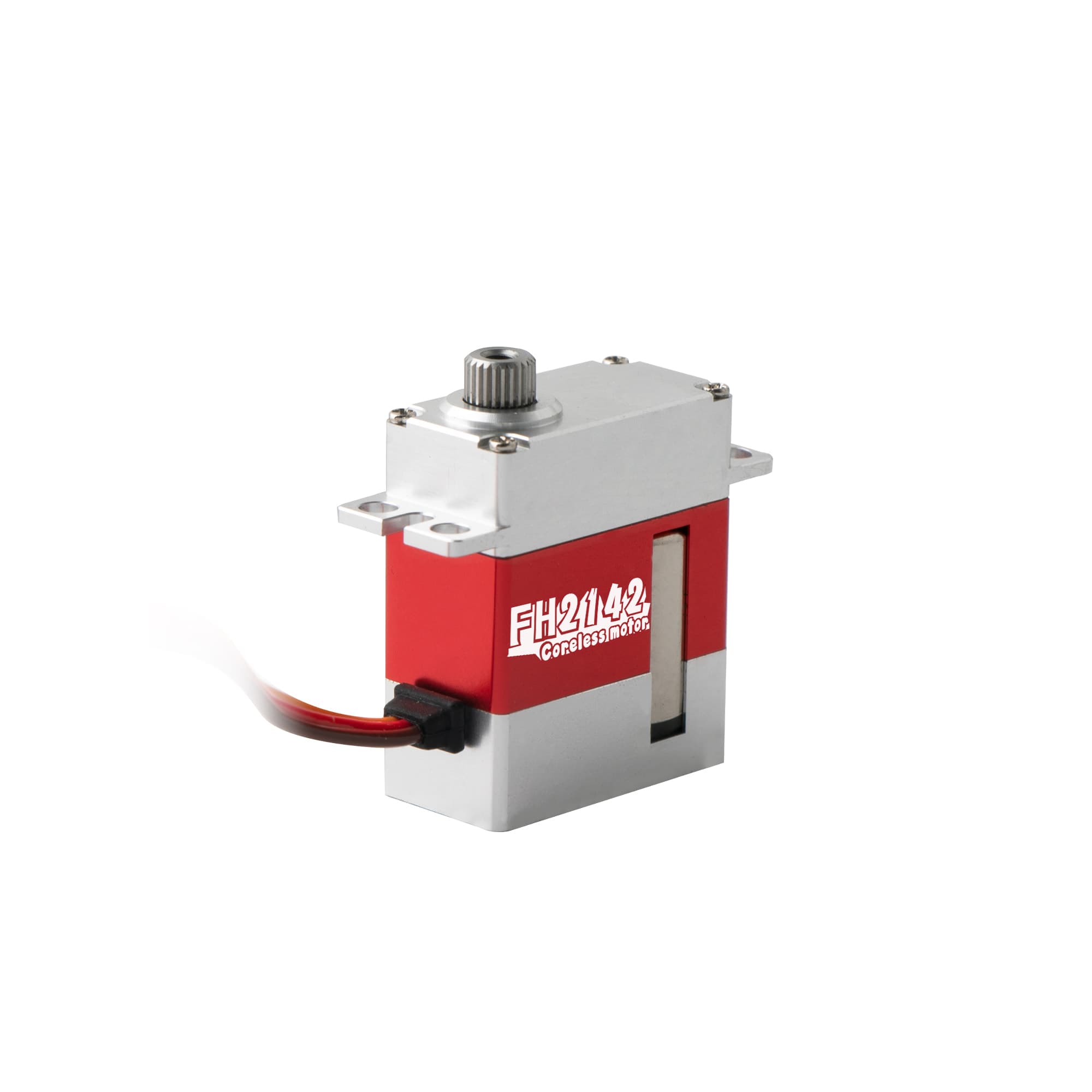

Reviews of Flash Hobby FH-2142
