Technical Specifications
Last Updated: 2026-07-10
|
Identity
Performance
Physical
Drivetrain
Control & Signal
Electrical & Environment
Connectivity
Origin
Preferences are saved automatically.
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |
| Product Number | (add) |
| Category | Hobby |
| Performance | |
| Torque |
12.6V
694.50 oz-in
50.01 kg-cm
4.9 N-m
11.1V
625.05 oz-in
45.01 kg-cm
4.4 N-m
8.4V
486.15 oz-in
35.01 kg-cm
3.4 N-m
|
| Speed |
12.6V
0.08 sec/60°
750.0 deg/s
125.0 RPM
11.1V
0.09 sec/60°
666.7 deg/s
111.1 RPM
8.4V
0.12 sec/60°
500.0 deg/s
83.3 RPM
|
| Running Current | (add) |
| Stall Current | (add) |
| Physical | |
| Weight | 2.82 oz80.0 g |
| Dimensions |
L 1.57 in W 0.79 in H 1.59 in L 39.9 mm W 20.1 mm H 40.4 mm |
| Case Material | Aluminum |
| Drivetrain | |
| Motor Type | Brushless |
| Motor Drive | (add) |
| Gears | Steel |
| Gear Spline/Teeth | 25 T |
| Shaft Size | (add) |
| Rotation Mode | (add) |
| Rotation/Support | Dual Bearings |
| Backlash | (add) |
| Control & Signal | |
| Modulation | Digital |
| Direction | (add) |
| Rotational Range | 180° |
| Mechanical Limit | (add) |
| Pulse Cycle | (add) |
| Pulse Width | 500-2500 µs |
| Neutral Position | (add) |
| Dead Band | (add) |
| Refresh Rate | (add) |
| Angle Sensor | Magnetic Encoder |
| Control System | (add) |
| Programmable | Yes |
| Signal Voltage | (add) |
| Electrical & Environment | |
| Operating Voltage | 6–12.6 V |
| Power Source | (add) |
| Regulator Type | (add) |
| Temperature | (add) |
| Water Rating | Waterproof |
| Certification | (add) |
| Idle Current | (add) |
| Connectivity | |
| Connector | JR (Universal) |
| Wire Length | 300 mm11.81 in |
| Origin | |
| Country of Origin | China |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Performance Analysis
| Shaft Power | 7.49–16.05 W |
| Torque Density | 6.0769 oz-in/g |
| Torque-to-Volume Ratio | 246.52 oz-in/in³ |
| Power Density | 8.139 W/in³ More power-dense than 94% of the 1644 Digital Standard servos in the database |
| Speed-to-Weight | 0.10417 (1/sec·g) |
| Speed-Torque Trade-off | 58.34 |
| Voltage Range Width | 6.6 V Wider voltage range than 99% of the 1269 Digital Standard servos in the database |
Quick Actions
Similar Active Servos

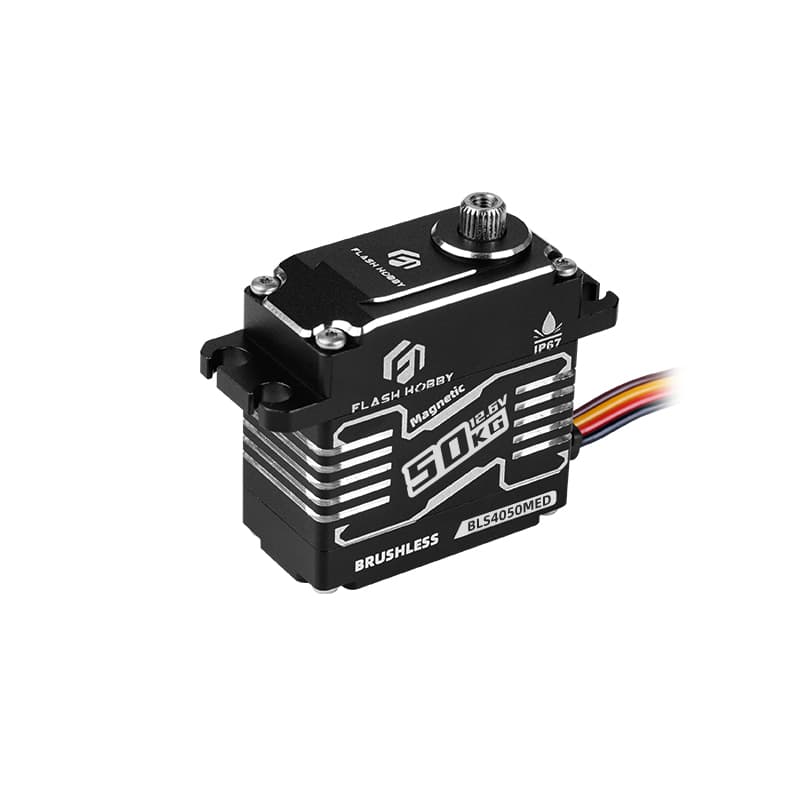

Reviews of Flash Hobby BLS4050MED
