Technical Specifications
Last Updated: 2026-07-10
|
Identity
Performance
Physical
Drivetrain
Control & Signal
Electrical & Environment
Connectivity
Origin
Preferences are saved automatically.
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |
| Product Number | (add) |
| Category | Hobby |
| Performance | |
| Torque |
8.4V
555.00 oz-in
39.96 kg-cm
3.9 N-m
7.4V
513.00 oz-in
36.94 kg-cm
3.6 N-m
6.0V
444.00 oz-in
31.97 kg-cm
3.1 N-m
|
| Speed |
8.4V
0.06 sec/60°
1,000.0 deg/s
166.7 RPM
7.4V
0.07 sec/60°
857.1 deg/s
142.9 RPM
6.0V
0.08 sec/60°
750.0 deg/s
125.0 RPM
|
| Running Current | (add) |
| Stall Current | (add) |
| Physical | |
| Weight | 2.50 oz71.0 g |
| Dimensions |
L 1.57 in W 0.79 in H 1.16 in L 39.9 mm W 20.1 mm H 29.5 mm |
| Case Material | Aluminum |
| Drivetrain | |
| Motor Type | Brushless |
| Motor Drive | (add) |
| Gears | Steel |
| Gear Spline/Teeth | 25 T |
| Shaft Size | (add) |
| Rotation Mode | (add) |
| Rotation/Support | Dual Bearings |
| Backlash | (add) |
| Control & Signal | |
| Modulation | Digital |
| Direction | (add) |
| Rotational Range | (add) |
| Mechanical Limit | (add) |
| Pulse Cycle | (add) |
| Pulse Width | (add) |
| Neutral Position | (add) |
| Dead Band | (add) |
| Refresh Rate | (add) |
| Angle Sensor | Magnetic Encoder |
| Control System | PWM |
| Programmable | Yes |
| Signal Voltage | (add) |
| Electrical & Environment | |
| Operating Voltage | 6–8.4 V |
| Power Source | (add) |
| Regulator Type | (add) |
| Temperature | (add) |
| Water Rating | Waterproof |
| Certification | (add) |
| Idle Current | (add) |
| Connectivity | |
| Connector | JR (Universal) |
| Wire Length | 300 mm11.81 in |
| Origin | |
| Country of Origin | China |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Performance Analysis
| Shaft Power | 10.26–17.10 W |
| Torque Density | 6.2535 oz-in/g Stronger than 89% of the 831 Digital Standard servos in the database |
| Torque-to-Volume Ratio | 308.60 oz-in/in³ Denser torque than 95% of the 842 Digital Standard servos in the database |
| Power Density | 11.888 W/in³ More power-dense than 99% of the 1643 Digital Standard servos in the database |
| Speed-to-Weight | 0.17606 (1/sec·g) Faster than 79% of the 820 Digital Standard servos in the database |
| Speed-Torque Trade-off | 35.52 Better balanced than 61% of the 825 Digital Standard servos in the database |
| Torque Gain per Volt | 10.42%/V More voltage-responsive (torque) than 20% of the 672 Digital Standard servos in the database |
| Speed Gain per Volt | 13.89%/V More voltage-responsive (speed) than 39% of the 686 Digital Standard servos in the database |
| Voltage Range Width | 2.4 V Wider voltage range than 48% of the 1268 Digital Standard servos in the database |
Quick Actions
Similar Active Servos

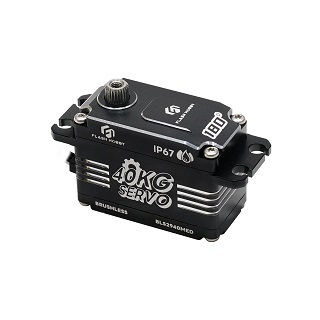

Reviews of Flash Hobby BLS2940MED
