Technical Specifications
Last Updated: 2026-09-03
|
Identity
Performance
Physical
Drivetrain
Control & Signal
Electrical & Environment
Connectivity
Origin
Preferences are saved automatically.
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |
| Product Number | 0102003035 |
| Category | Hobby |
| Performance | |
| Torque |
8.4V
27.77 oz-in
2.00 kg-cm
0.2 N-m
6.0V
19.44 oz-in
1.40 kg-cm
0.1 N-m
|
| Speed |
8.4V
0.12 sec/60°
500.0 deg/s
83.3 RPM
6.0V
0.17 sec/60°
352.9 deg/s
58.8 RPM
|
| Running Current |
8.4V
0.200 A
200 mA
6.0V
0.150 A
150 mA
|
| Stall Current | 0.4–0.5 A400–500 mA |
| Physical | |
| Weight | 0.42 oz12.0 g |
| Dimensions |
L 0.91 in W 0.45 in H 0.94 in L 23.0 mm W 11.5 mm H 24.0 mm |
| Case Material | Plastic |
| Drivetrain | |
| Motor Type | Brushed |
| Motor Drive | (add) |
| Gears | Metal |
| Gear Spline/Teeth | 15 T |
| Shaft Size | (add) |
| Rotation Mode | Positional |
| Rotation/Support | Bushing |
| Backlash | (add) |
| Control & Signal | |
| Modulation | Analog |
| Direction | Counterclockwise |
| Rotational Range | 95° |
| Mechanical Limit | 360° |
| Pulse Cycle | (add) |
| Pulse Width | 600-2400 µs |
| Neutral Position | 1500 µs |
| Dead Band | 1.001 µs |
| Refresh Rate | 333 Hz |
| Angle Sensor | Potentiometer |
| Control System | PWM |
| Programmable | (add) |
| Signal Voltage | (add) |
| Electrical & Environment | |
| Operating Voltage | 6–8.4 V |
| Power Source | (add) |
| Regulator Type | (add) |
| Temperature | -10–60 °C14–140 °F |
| Water Rating | (add) |
| Certification | CE |
| Idle Current | 0.007 A7 mA |
| Connectivity | |
| Connector | JR (Universal) |
| Wire Length | 250 mm9.84 in |
| Origin | |
| Country of Origin | China |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Performance Analysis
| Shaft Power | 0.21–0.43 W |
| Torque Density | 1.6202 oz-in/g Stronger than 13% of the 131 Analog Micro servos in the database |
| Torque-to-Volume Ratio | 50.19 oz-in/in³ Denser torque than 51% of the 131 Analog Micro servos in the database |
| Power Density | 1.105 W/in³ More power-dense than 72% of the 319 Analog Micro servos in the database |
| Speed-to-Weight | 0.49020 (1/sec·g) Faster than 3% of the 130 Analog Micro servos in the database |
| Speed-Torque Trade-off | 3.31 Better balanced than 91% of the 130 Analog Micro servos in the database |
| Current-per-Torque Ratio | 0.0257 A/oz-in 4th-highest current-per-torque ratio of 32 Analog Micro servos |
| Idle-to-Running Current Ratio | 0.047 Lower idle draw than 47% of the 35 Hobby servos in the database |
| No-Load vs Stall Current Spread | 3.33 Narrower current spread than 75% of the 62 Hobby servos in the database |
| Torque Gain per Volt | 17.86%/V More voltage-responsive (torque) than 68% of the 72 Analog Micro servos in the database |
| Speed Gain per Volt | 17.37%/V More voltage-responsive (speed) than 74% of the 71 Analog Micro servos in the database |
| Voltage Range Width | 2.4 V Wider voltage range than 95% of the 137 Analog Micro servos in the database |
| Dead-Band-to-Pulse-Width Ratio | 0.0006 2nd-highest dead-band-to-pulse-width ratio of 28 Analog Micro servos |
Notes
This servo also comes in a lower voltage version - ES08MA 2.
Quick Actions
Similar Active Servos

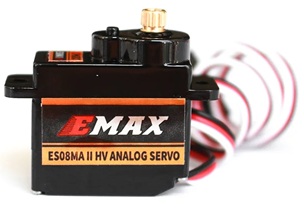

Reviews of EMAX ES08MA 2 HV
