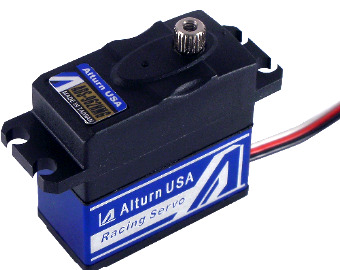

Alturn ADS-966HTG - Full Size Racing Digital Servo

Specifications

Source: Most data comes from the manufacturer but some data is sourced from our loyal community.

Last Updated:	2025-07-07
Modulation:	Digital
Torque:	4.8V: 201.00 oz-in (14.47 kg-cm) 6.0V: 258.00 oz-in (18.58 kg-cm)
Speed:	4.8V: 0.19 sec/60° 6.0V: 0.16 sec/60°
Weight:	1.73 oz (49.0 g)
Dimensions:	Length:1.56 in (39.6 mm) Width:0.74 in (18.8 mm) Height:1.54 in (39.1 mm)
Motor Type:	Coreless
Gear Type:	Metal
Rotation/Support:	Dual Bearings
Rotational Range:	80°
Pulse Cycle:	(add)
Pulse Width:	1500-2000 µs
Connector Type:	(add)
