Technical Specifications
Last Updated: 2026-10-23
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

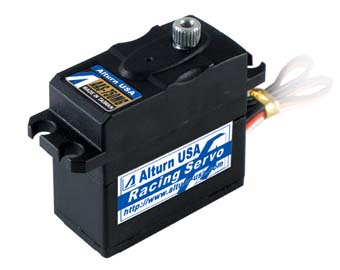

| Product Number | AAS-750MG |
| Category | Hobby |
| Discontinued | Yes |
| Performance | |
| Torque |
6.0V
182.00 oz-in
13.11 kg-cm
1.3 N-m
4.8V
149.00 oz-in
10.73 kg-cm
1.1 N-m
Above Average
|
| Speed |
6.0V
0.12 sec/60°
500.0 deg/s
83.3 RPM
4.8V
0.14 sec/60°
428.6 deg/s
71.4 RPM
Above Average
|
| Running Current |
6.0V
0.410 A
410 mA
4.8V
0.410 A
410 mA
Below Average
|
| Stall Current | 0.97–1.2 A970–1200 mAAverage |
| Physical | |
| Weight | 1.69 oz48.0 gAverage |
| Dimensions |
L 1.56 in W 0.74 in H 1.54 in L 39.6 mm W 18.8 mm H 39.1 mm |
| Drivetrain | |
| Motor Type | 3-pole |
| Motor Drive | MOS |
| Gears | Metal |
| Gear Spline/Teeth | 25 T |
| Rotation Mode | Positional |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Modulation | Analog |
| Direction | Clockwise |
| Rotational Range | 80° |
| Pulse Width | 1500-1900 µs |
| Neutral Position | 1500 µs |
| Dead Band | 8 µs |
| Angle Sensor | Potentiometer |
| Control System | PWM |
| Electrical & Environment | |
| Operating Voltage | 4.8–6 V |
| Temperature | -20–60 °C-4–140 °F |
| Idle Current | 0.002 A2 mA |
| Connectivity | |
| Wire Length | 200 mm7.87 in |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Torque | Above Average Stronger than 85% of 198 Analog Standard servos at 4.8V |
| Speed | Above Average Faster than 82% of 195 Analog Standard servos at 4.8V |
| Weight | Average Lighter than 52% of 447 Analog Standard servos |
| Running Current | Below Average Lower draw than 15% of 49 Analog Standard servos at 4.8V |
| Stall Current | Average Lower draw than 58% of 63 Analog Standard servos |
Performance Analysis
| Shaft Power | 1.97–2.80 W |
| Power Density | 1.577 W/in³ More power-dense than 95% of 432 Analog Standard servos |
| Torque Density | 3.1042 oz-in/g Stronger than 91% of 198 Analog Standard servos |
| Torque-to-Volume Ratio | 83.81 oz-in/in³ Denser torque than 88% of 198 Analog Standard servos |
| Speed-to-Weight | 0.14881 (1/sec·g) Faster than 81% of 195 Analog Standard servos |
| Speed-Torque Trade-off | 20.86 Better balanced than 70% of 195 Analog Standard servos |
| Current-per-Torque Ratio | 0.0081 A/oz-in 2nd-highest current-per-torque ratio of 54 Analog Standard servos |
| Idle-to-Running Current Ratio | 0.005 2nd-highest idle-to-running current ratio of 38 Analog Standard servos |
| No-Load vs Stall Current Spread | 2.93 2nd-highest no-load vs stall current spread of 35 Analog Standard servos |
| Torque Gain per Volt | 18.46%/V More voltage-responsive (torque) than 68% of 156 Analog Standard servos |
| Speed Gain per Volt | 13.88%/V More voltage-responsive (speed) than 45% of 156 Analog Standard servos |
| Voltage Range Width | 1.2 V Wider voltage range than 10% of 239 Analog Standard servos |
| Dead-Band-to-Pulse-Width Ratio | 0.0200 Finer dead band than 7% of 56 Analog Standard servos |
Similar Active Servos
Reviews (1)
Includes 1 review aggregated from around the web.
There are very few reviews for this servo on the web. A German forum member says the stock unit in his 1/8 truggy began clicking and weakening after the third run and then could not move the wheels while stationary.
