Technical Specifications
Last Updated: 2026-10-10
Weight
Dimensions
Torque
Speed
Current
Temp
Wire
| Identity | |
| Brand |  |

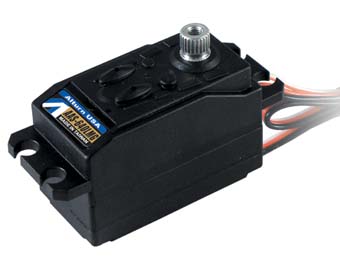

| Product Number | AAS-640LMG |
| Category | Hobby |
| Performance | |
| Torque |
6.0V
134.00 oz-in
9.65 kg-cm
0.9 N-m
4.8V
112.00 oz-in
8.06 kg-cm
0.8 N-m
|
| Speed |
6.0V
0.14 sec/60°
428.6 deg/s
71.4 RPM
4.8V
0.16 sec/60°
375.0 deg/s
62.5 RPM
|
| Physical | |
| Weight | 1.20 oz34.0 gAverage |
| Dimensions |
L 1.65 in W 0.78 in H 0.87 in L 41.9 mm W 19.8 mm H 22.1 mm |
| Drivetrain | |
| Motor Type | Coreless |
| Gears | Metal |
| Rotation/Support | Dual Bearings |
| Control & Signal | |
| Modulation | Analog |
| Rotational Range | 80° |
| Pulse Width | 1500-1900 µs |
Disclaimer: Most data is sourced from the manufacturer. Some data is sourced from our loyal community and with the help of AI. We aim for accuracy but are not responsible for inaccurate information.
Class Comparison
| Weight | Average Lighter than 41% of 52 Analog Low Profile servos |
Performance Analysis
| Shaft Power | 1.29–1.77 W |
| Power Density | 1.581 W/in³ 2nd-highest power density of 50 Analog Low Profile servos |
| Torque Density | 3.2941 oz-in/g |
| Torque-to-Volume Ratio | 100.03 oz-in/in³ |
| Speed-to-Weight | 0.18382 (1/sec·g) |
| Speed-Torque Trade-off | 17.92 |
