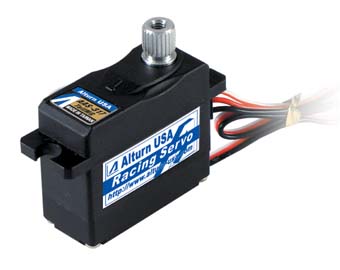

Alturn AAS-317TailMG - Micro Tail Servo

Specifications

Source: Most data comes from the manufacturer but some data is sourced from our loyal community.

Last Updated:	2025-07-07
Modulation:	Analog
Torque:	4.8V: 24.00 oz-in (1.73 kg-cm) 6.0V: 30.00 oz-in (2.16 kg-cm)
Speed:	4.8V: 0.11 sec/60° 6.0V: 0.08 sec/60°
Weight:	0.58 oz (16.5 g)
Dimensions:	Length:1.10 in (27.9 mm) Width:0.52 in (13.2 mm) Height:1.12 in (28.4 mm)
Motor Type:	Coreless
Gear Type:	Metal
Rotation/Support:	Single Bearing
Rotational Range:	80°
Pulse Cycle:	(add)
Pulse Width:	1500-1900 µs
Connector Type:	(add)
